DeFion Modular Architectural Wall System (MAS)


DeFion Modular Panel Solution ( is our latest range of high quality products that enable the construction industry to modularize, maximize and manage space and profi t DeFion high quality reinforced panels are built to demanding specifications, suitable for walls, slabs and other applications, reducing construction cost.

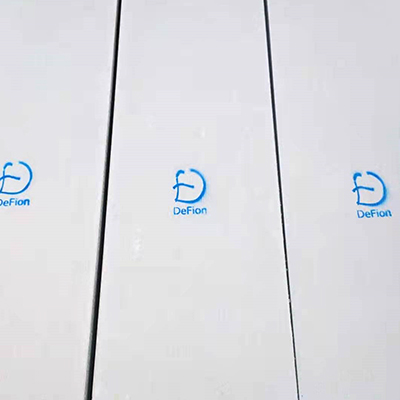

DeFion Wall

DeFion Wall

+

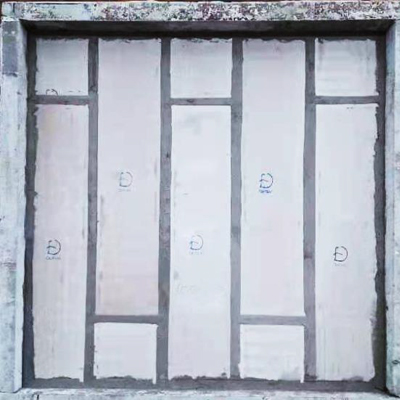

Wall during the fire test

Wall during the fire test

+

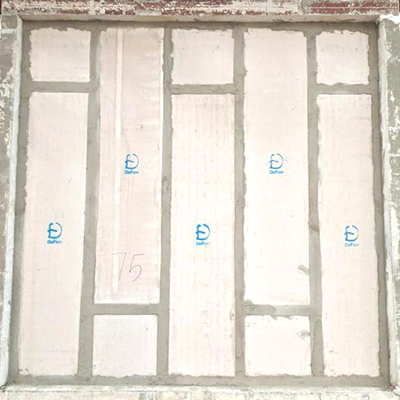

MAS Under Test Condition

MAS Under Test Condition

+

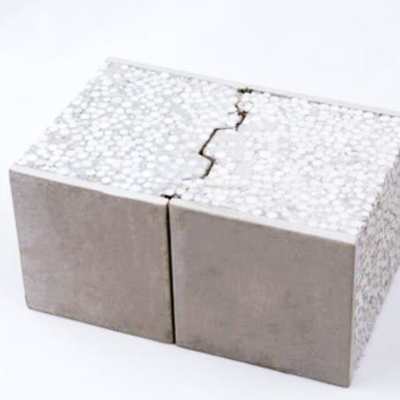

50mm Thickness
- 1hr Fire Rating
- Panel size: W610 x L2440mm

50mm Thickness

+

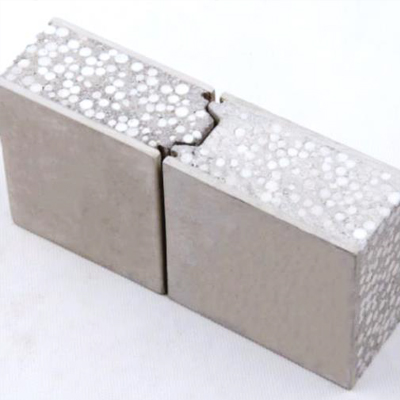

75mm Thickness
- 2hrs Fire Rating
- up to 480kg (320 kg/sm)
- Panel size: W610 x L2440mm

75mm Thickness

+

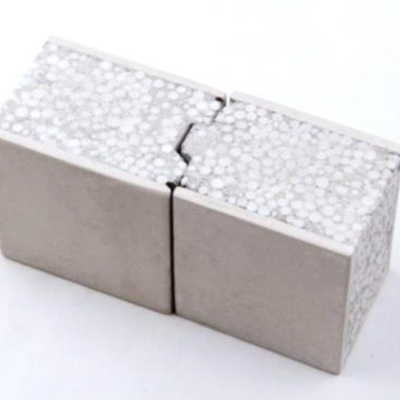

100mm Thickness
- 3.5hrs Fire Rating
- up to 660kg (440 kg/sm)
- Panel size: W610 x L2440mm

100mm Thickness

+

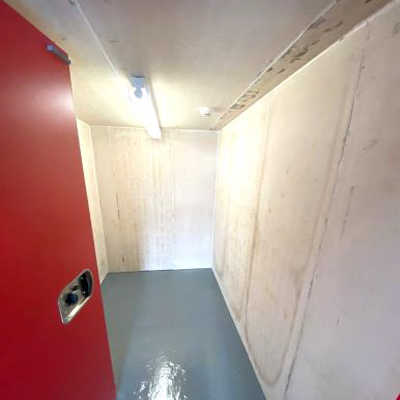

Modular Room

Modular Room

+


Fire: BS EN 1364-1:2015 Part 1
- 75mm thick DWP:
Integrity: 121 minutes; Insulation: 121 minutes

- 100mm thick DWP:
Integrity: 227 minutes; Insultation: 211 minutes


Transverse Load test: ASTM E 72-15
- 75mm thick DWP:
up to 480kg (320 kg/sm)

- 100mm thick DWP:
up to 660kg (440 kg/sm)

- Strength and Robustness:
BS 5234-2:1992 Part 2

- 100mm thick DWP:
Passed grades: Light Duty; Medium Duty; Heavy Duty; Severe Duty


Weighted Sound Reduction: ISO 10140-2 Part 2 / ISO 717-1:2013
- RW 38dB

Features:
- Water Resistant
- Horizontal Load Test
- Light Weight
- Fire Resistant
- Easy Modulization
- Impact Load Tested
- Sound Insulation
